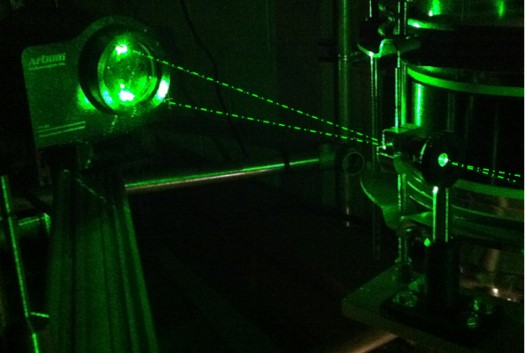

Artium Phase Doppler Interferometer

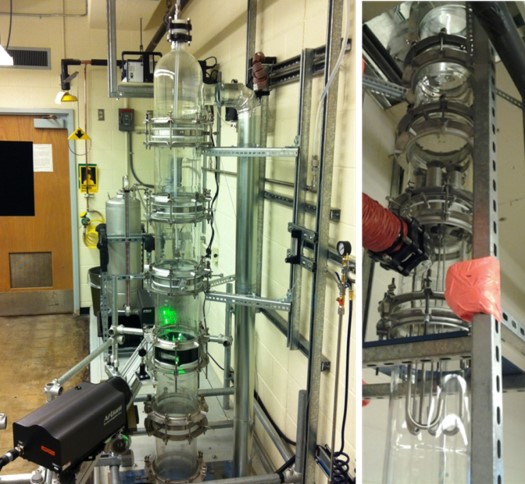

3.25 m x 200 mm f glass spray column
Artium Phase Doppler Interferometer
Class 3B laser 300 mW @ 532 nm

• Laser mounting facilitates full radial interrogation of spray (droplet diameter and velocity)

• Gas and liquid composition measured at each segment of the column

• Micro GC used to measure gas phase CO2 concentration

• Total inorganic carbon (TIC) measurement used to measure liquid phase CO2 concentration

• Maximum C-factor: 0.35 ft/s

• Maximum liquid rate: 10 GPM

• Measureable droplet diameter range: 0.5 µm – 2 mm

• Maximum measureable droplet velocity: 200 m/s
